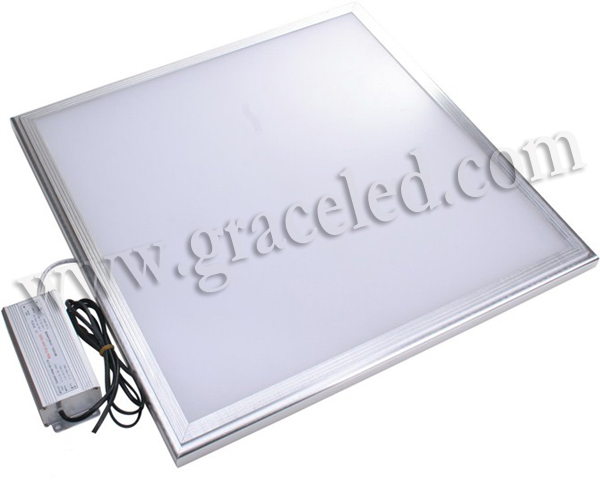

45W 48W 600X600mm LED Panel light

Item No. : GL-PL-45W02/GL-PL-48W02
Certificates: Meet CE&RoHS standard
LED Sources: 3014SMD
Input Voltage: AC85-265V
Driver: External Type
Warranty: 3 years

Description

Features:


1,  Imported Slim Light Guide Plate could assure hight brightness, with light transmission rate at 80%
2.  External high power factor Power supply.
3,  Warranty Policy : 2 years warranty with original written warranty , 20,000 switch cycles(on/off switching)
4 .Low lighting dissipation/sink
The light source is the low lighting dissipation and high-bright LED, which the dissipation is less than 30% during 50000hours.
5. SMD 3014 LEDs for the Light source, high brightness.
6.Environment protection:While working, no ultraviolet light and infrared light radiation. And never contain any hazardous substance, such as Mercury.
7. Eyes protection: Diffused cover ,never see LED ,good for eyes; adopting constant current power supply, no flashing, no harm for eyes.
8, Super slim design, 11mm thickness, fashion and good looking.

Technical Parameter:

Modle No. GL-PL-45W02 GL-PL-48W02
Material Aluminum Frame+Acrylic plate Aluminum Frame+Acrylic plate
LED Brand Epistar Epistar
Power 45W 48W
Led QTY 450pcs3014 480pcs3014
Input Voltage AC85-265V AC85-265V
Frequency Range 50-60z 50-60z
Lumen Output 3300-3400lm 3500-3800lm
CRI a75 a75
Lighting Angle 155 º 155 º
Life Span 50000hours 50000hours
Color Temperature Warm white(3000k)
Natural white(4500K)
Cool white(6000K)
Warm white(3000k)
Natural white(4500K)
Cool white(6000K)
Working Temperature –20-+50 °   C –20-+50 °   C
Storage Temperature 0 - 50 ° C 0 - 50 ° C
Junction Temperature 10 % ~ 90 % RH 10 % ~ 90 % RH
Product size 600*600*11mm 600*600*11mm
Packing size 680*640*40mm 680*640*40mm
Net / Gross weight 4.0/4.8KG 4.1/4.9KG

Applications:

Hotels,Meeting rooms,Offices,hospitals, Schools, Factories, Museums,Homes,Decorating lights,  Showing and wall lights,Retail stores,  Commercial lightings, Shopping malls, Supermarkets,Kitchens,   Home indoor lightings and so on.



Packing:
