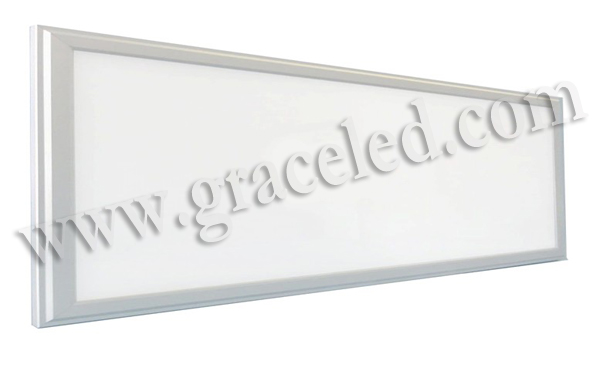

36W 1200X300mm LED Panel light

Item No. : GL-PL-36W01
Certificates: Meet CE&RoHS standard
LED Sources: 3014SMD
Input Voltage: AC85-265V
Driver: External Type
Warranty: 3 years

Description



Features:


1,  Imported Slim Light Guide Plate could assure hight brightness, with light transmission rate at 80%
2.  External high power factor Power supply.
3,  Warranty Policy : 2 years warranty with original written warranty , 20,000 switch cycles(on/off switching)
4 .Low lighting dissipation/sink
The light source is the low lighting dissipation and high-bright LED, which the dissipation is less than 30% during 50000hours.
5. SMD 3014 LEDs for the Light source, high brightness.
6.Environment protection:While working, no ultraviolet light and infrared light radiation. And never contain any hazardous substance, such as Mercury.
7. Eyes protection: Diffused cover ,never see LED ,good for eyes; adopting constant current power supply, no flashing, no harm for eyes.
8, Super slim design, 11mm thickness, fashion and good looking.

Technical Parameter:



Modle No. GL-PL-36W01
Material Aluminum Frame+Acrylic plate
LED Brand Epistar
Power 32W
Led QTY 320pcs3014
Input Voltage AC85-265V
Frequency Range 50-60z
Lumen Output 2400-2600lm
CRI a75
Lighting Angle 155 º
Life Span 50000hours
Color Temperature Warm white(3000k)
Natural white(4500K)
Cool white(6000K)
Working Temperature –20-+50 °   C
Storage Temperature 0 - 50 ° C
Junction Temperature 10 % ~ 90 % RH
Product size 1200*300*11mm
Packing size 1277*340*40mm
Net / Gross weight 3.8/4.6kg



Applications:

Hotels,Meeting rooms,Offices,hospitals, Schools, Factories, Museums,Homes,Decorating lights,  Showing and wall lights,Retail stores,  Commercial lightings, Shopping malls, Supermarkets,Kitchens,   Home indoor lightings and so on.
