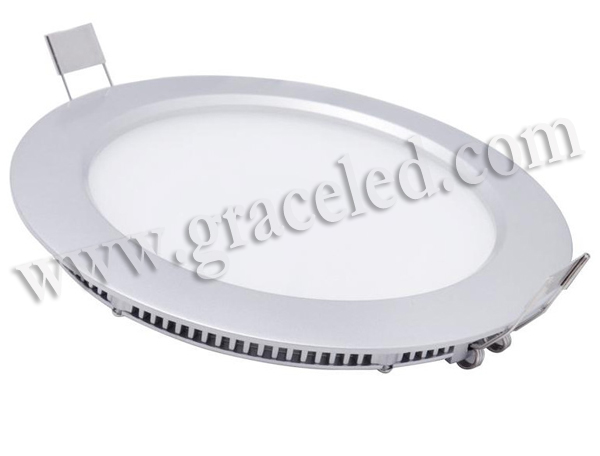

18W Round LED Panel light
Item No. : GL-PL-18W
Certificates: Meet CE&RoHS standard
LED Sources: 3014SMD LEDs
Input Voltage: AC85-265V
Driver: External Type
Warranty: 3 years
Description
Features:
1, Imported Slim Light Guide Plate could assure hight brightness, with light transmission rate at 80%
2. External high power factor Power supply.
3, Warranty Policy : 2 years warranty with original written warranty , 20,000 switch cycles(on/off switching)
4 .Low lighting dissipation/sink
The light source is the low lighting dissipation and high-bright LED, which the dissipation is less than 30% during 50000hours.
5. SMD 3014 LEDs for the Light source, high brightness.
6.Environment protection:While working, no ultraviolet light and infrared light radiation. And never contain any hazardous substance, such as Mercury.
7. Eyes protection: Diffused cover ,never see LED ,good for eyes; adopting constant current power supply, no flashing, no harm for eyes.
8, Super slim design, 18mm thickness, fashion and good looking.
Technical Parameter:
| Modle No. | GL-PL-18W |
| Material | Aluminum Frame+Acrylic plate |
| LED Brand | Epistar |
| Power | 16W |
| Led QTY | 160 pcs |
| Input Voltage | AC85-265V |
| Frequency Range | 50-60Ｈz |
| Lumen Output | 900-950lm |
| CRI | Ｒa＞75 |
| Lighting Angle | 120 º |
| Life Span | 50000hours |
| Color Temperature | Warm white(3000k) Natural white(4500K) Cool white(6000K) |
| Working Temperature | –20-+50 ° C |
| Storage Temperature | 0 - 50 ° C |
| Junction Temperature | 10 % ~ 90 % RH |
| Product size | Φ300*18mm |
| Packing size | 377*340*35mm |
| Hole size | Φ285mm |
| Luminance surface diameter | Φ247 |
| Net / Gross weight | 1.1/1.6kg |
Applications:
Hotels,Meeting rooms,Offices,hospitals, Schools, Factories, Museums,Homes,Decorating lights, Showing and wall lights,Retail stores, Commercial lightings, Shopping malls, Supermarkets,Kitchens, Home indoor lightings and so on.

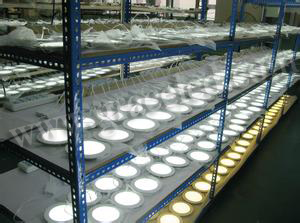

Aging Test:
