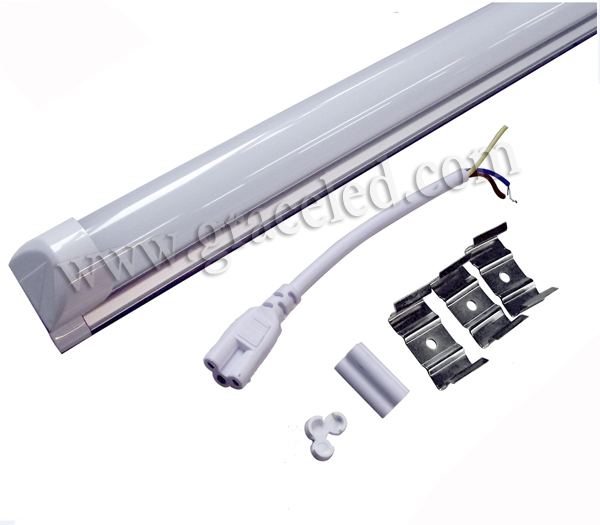

Integrated T8 3014SMD LED Tube light 9W 18W 24W

Item No. : GL-T8-3014-F2-9W
Certificates: Meet CE&RoHS standard
Lampshade: Clear and Frosted
Length: 0.6m, 1.2m, 1.5m
Lifespan: 50,000 hours
Warranty: 3 Years

Description

Special Features:

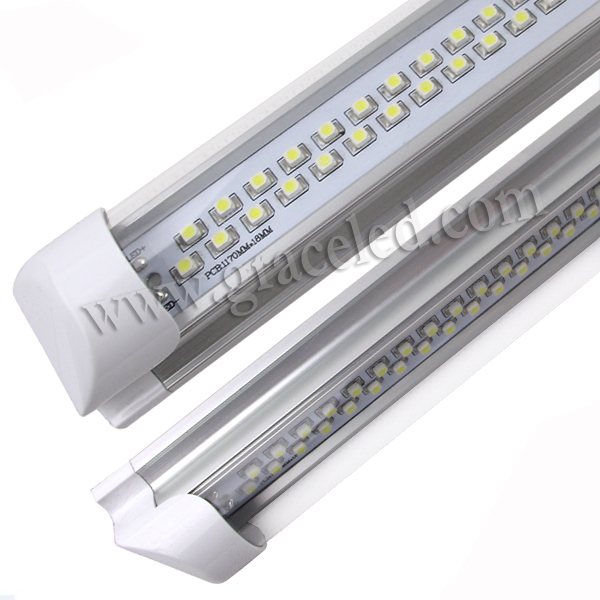

1. Adopted High brightness Epistar 3014SMD LEDs. (70%-80% Energy-saving over fluorescent tubes)
2. Build-in Zener Diodes.(If one led fail, the remaining LEDs will still work)
3. Build-in High Efficiency driver, Power factor can be above 0.95.
4. Standard Length 60cm, 120cm and 150cm.
5. Wide voltage input 85-265V AC.
6. Work without ballast, Instant soft-start.
7. No RF interference, No flickering and buzzing.
8. No Mercury and other hazardous materials, fully RoHS compliance.
9. Frosted and Clear cover are available. (Frosted cover, never see LEDs, good for eyes)
10. High Shock/vibration resistant(not easy to be broken)
11. 3 years warranty time.( Working hours can be up to 50,000 hrs)

Technical Parameter:


Item No.  GL-T8-3014-F2-9W01 GL-T8-3014-F4-18W01 GL-T8-3014-F4-24W01
Size 600X26mm 1200X26mm 1500X26mm
Color temperature Warm white:3000K                    Natural white:4500K
Pure white:6000K
Warm white:3000K                    Natural white:4500K
Pure white:6000K
Warm white:3000K                    Natural white:4500K
Pure white:6000K
Type of LEDs SMD3014 SMD3014 SMD3014
LEDs quantity 96pcs 192pcs 220pcs
Input Voltage AC85-265V AC85-265V AC85-265V
Power 9W 18W 25W
Lumen 840LM 1650LM 2150LM
Driver Build-in constant current driver, PF>0.95 Build-in constant current driver, PF>0.95 Build-in constant current driver, PF>0.95



Application:

1, Office building, Shops, Shopping mall, Supermarket;2, School, Hospital, Exhibition hall; 3, Warehouse market lighting; 4, Factory; 5, Airport





Aging Test:





Packing:
