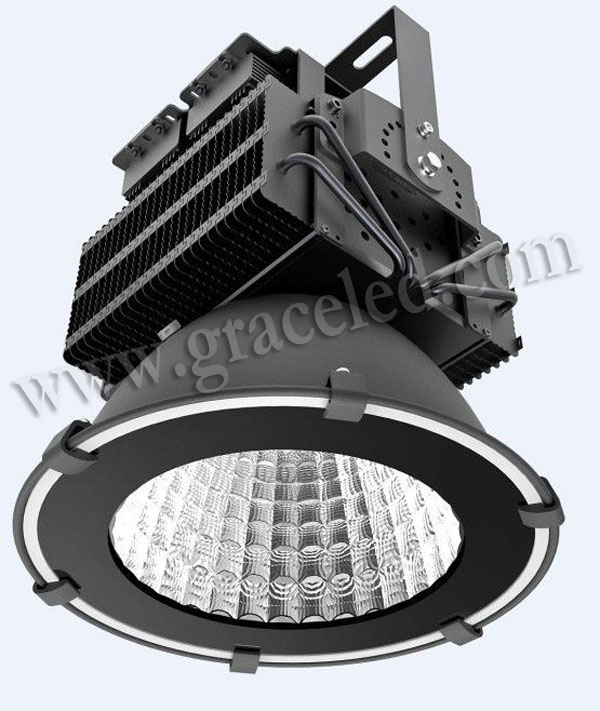

IP65 300W COB LED Highbay light Fixture
Item No. : GL-GK300W
Certificates: Meet CE&RoHS standard
LED Sources: COB LEDs
Angle: 25°45°62°90°100°
Driver: Meanwell Driver
Warranty: 3 years
IP Rate: IP65
Description
Features:
♦ New Fin-cooling heat sink, cooper heatpipe Larger heat dissipating area, better air convection;
♦ Power Supply: Taiwan Mean Well, power factor over 0.96, long lifespan;
♦ USA Cree Chip, high bright, high color rendering, long life;
♦ Waterproof and dustproof design: IP65 design;
♦ Direct replacement of halogen, energy saving 70% than halogen lamp;
♦ No IR or UV radiation, light uniformity, visual comfort.
Technical Parameter:
| Model Number | GL-GK300W |
| Power | 300W |
| Power/Quantity | 1pc*300W |
| Luminous flux: | 27000-32000lm |
| Power Factor(PF) | >0.95 |
| Power Efficiency | > 90% |
| Color Index(CRI) | Ra85 |
| Lamp' s Efficiency (%) | > 90 % |
| IP Rating | IP 65 |
| Color Temperature | Warm White: 3000K Nature White: 4500K Cool White: 6500K |
| Working Life | > 50, 000 Hrs |
| Light Body & Lampshade Material | Aluminum Body & Glass cover |
| Input Voltage / Frequency Range | AC85 - 265V / 50/60 Hz |
| The driver | Meanwell |
| Total Harmonic Distortion (THD) | 8% |
| Working Temperature | - 40 - + 50 ° C |
| Storage Temperature | 0 - 50 ° C |
| Working Humidity | 10 % ~ 90 % RH |
| Junction Temperature | 70 ° C ± 1 0% ( Ta= 25 ° C ) |
| Dimension | φ374x459mm |

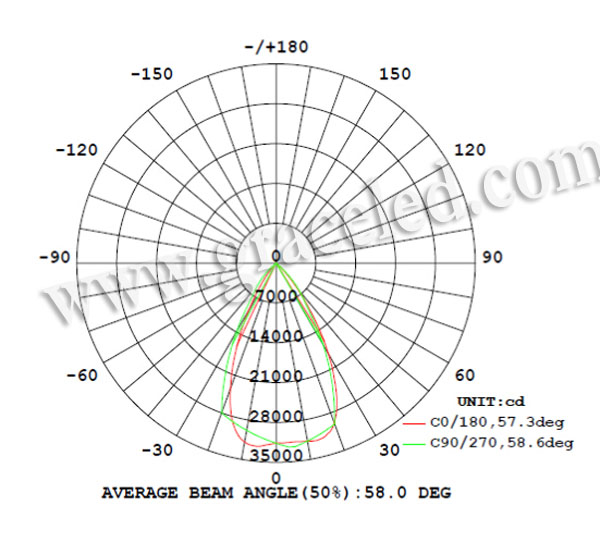

Luminous Intensity Distribution Diagram:

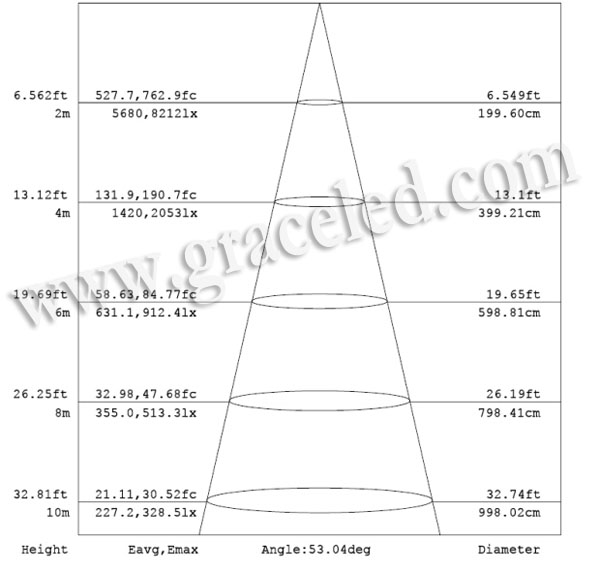

Lux Level:

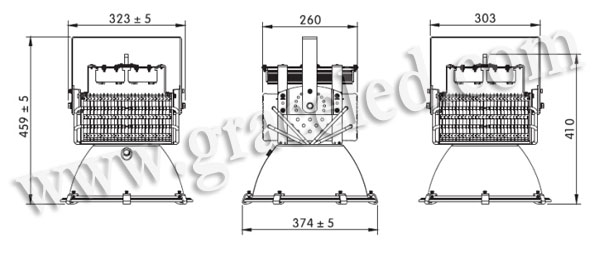

Product Dimensions:
Applications:
Widely used in Factory, Coliseum, Shops, Super market, Underground platform, Gas station and other illumination and decoration at home and public area.
