IP65 150W COB LED Highbay light Fixture

Item No. : GL-GK150W
Certificates: Meet CE&RoHS standard
LED Sources: COB LEDs
Angle: 25°45°62°90°100°
Driver: Meanwell Driver
Warranty: 3 years
IP Rate: IP65

Description

Features:

♦ New Fin-cooling heat sink, cooper heatpipe Larger heat dissipating area, better air convection;

♦ Power Supply: Taiwan Mean Well, power factor over 0.96, long lifespan;

♦ USA Cree Chip, high bright, high color rendering, long life;

♦ Waterproof and dustproof design: IP65 design;

♦ Direct replacement of halogen, energy saving 70% than halogen lamp;

♦ No IR or UV radiation, light uniformity, visual comfort.



Technical Parameter:



Model Number GL-GK150W
  Power 150W
Power/Quantity 1pc*150W
Luminous flux: 13000-15500lm
Power Factor(PF) >0.95
Power Efficiency > 90%
Color Index(CRI) Ra85
Lamp' s Efficiency (%) > 90 %
IP Rating IP 65
Color Temperature Warm White: 3000K
Nature White: 4500K
Cool White: 6500K
Working Life > 50, 000 Hrs
Light Body & Lampshade Material Aluminum Body & Glass cover
Input Voltage / Frequency Range AC85 - 265V / 50/60 Hz
The driver  Meanwell
Total Harmonic Distortion (THD) 8%
Working Temperature - 40 - + 50 ° C
Storage Temperature 0 - 50 ° C
Working Humidity 10 % ~ 90 % RH
Junction Temperature 70 ° C ± 1 0% ( Ta= 25 ° C )
Dimension φ374x459mm



Luminous Intensity Distribution Diagram:

Lux Level:

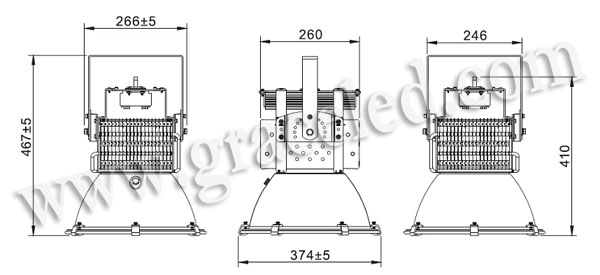

Product Dimensions:



Applications:

Widely used in Factory,  Coliseum, Shops, Super market, Underground platformGas station and other illumination and decoration at home and public area.
