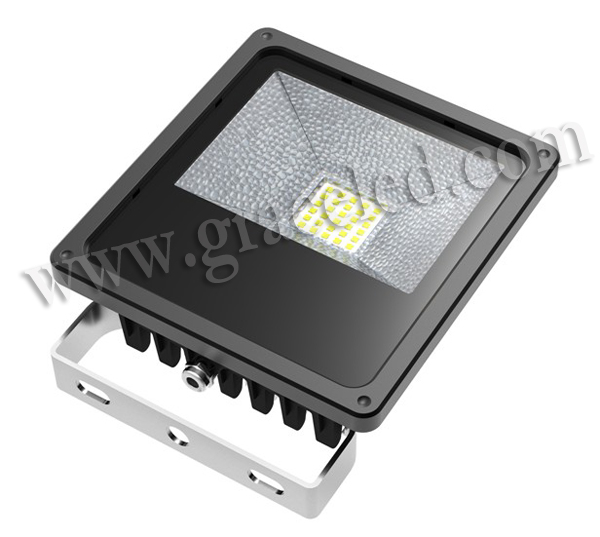

Fin Type 30W LED Flood light
Item No. : GL-FL1-30W
Certificates: Meet CE&RoHS standard
LED Sources: COB LEDs
IP Rate: IP65
Driver: Build-in Type
Warranty: 3 years
Description
Features:
1.1060 Pure aluminum sheet with Fin Technology and high intensity toughened glass cover;
3. High efficiency and power factor LED driver;
4. Single Powerful COB LED as the light source;imported high bright semiconductor chips;
5. Start without delay and no flickering;
6. High shock & vibration resistant;
7. Ideal Fin Technology of Copper Heat Pipe design to give the heat away and make sure long lifespan;
8. No UV & IR, No Blinking and No Mercury & Lead free;
9. Patented fixture design and Led package technology;
10. Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light or HPS light.
| Modle No. | GL-FL1-30W |
| Material | 1060 Pure Aluminum Sheet with FIN Technology |
| LED Brand | Epistar |
| Power | 30W |
| Led QTY | 1 pcs |
| Input Voltage | AC85-265V |
| Frequency Range | 50-60Ｈz |
| Lumen | 80-100lm/w |
| CRI | Ｒa＞75 |
| Lighting Angle | 120 º |
| Total Harmonic Distortion (THD) | 8% |
| Life Span | 50000hours |
| Color Temperature | Warm white(3000k) Natural white(4500K) Cool white(6000K) |
| Working Temperature | –20-+50 ° C |
| Storage Temperature | 0 - 50 ° C |
| Junction Temperature | 10 % ~ 90 % RH |
| Housing Color | Black Housing Clear Toughtened glass |

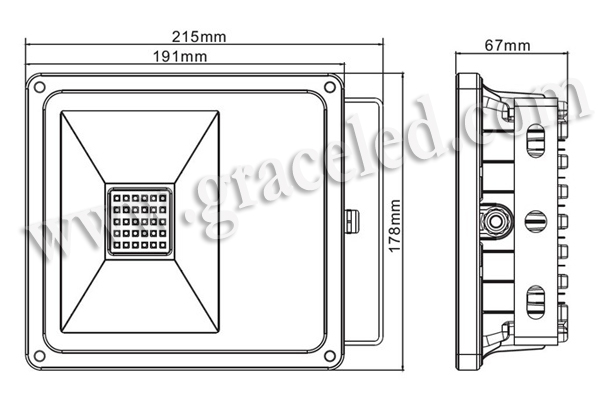

| Dimension | 215×178×67mm |
Applications:
1. Tunnel, Subway, Underground Lighting;
2. Gymnasium, Sports Stadium Lighting;
3.Building, Billboard Lighting;
4.Gas Station, Garage Lighting;
5. Park, Garden Lighting;
6. Workshop, Factory Lighting;
7.Warehouse, Storage Lighting;
8. Yard, Square Lighting;
9.Road,Highway Lighting;
10.Station,Dock Lighting etc.
Product Structure:
Aging Test:
Packaging:
