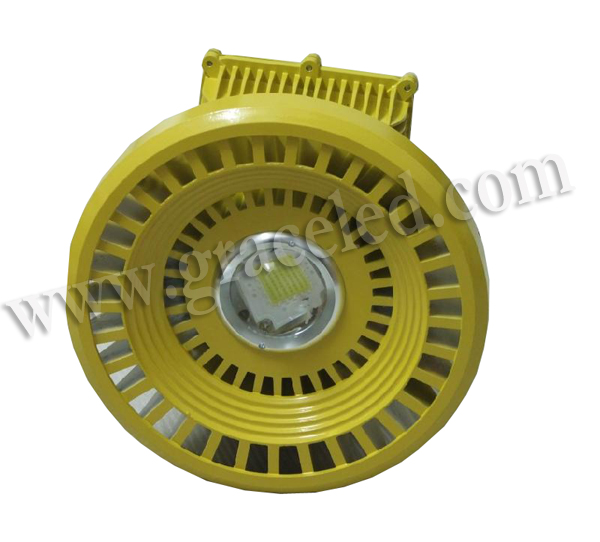

80W LED Explosion Proof light

Item No. : GL-EP-80W
Certificates: Meet CE&RoHS standard
LED Sources: COB LEDs
Driver: Build-in Type
Warranty: 3 years

Description



Feature of led explosion-proof lights:

1. CE RoHS PSE approved.
2. Die-casting aluminum casing and high intensity toughened glass cover
3. High efficiency and power factor LED driver
4. Wide radiation angle, huge lighting area
5. Start without delay and flicker free
6. Good color rendering
7. Warm and cold color temperature are available
8. High shock & vibration resistant
9. Ideal heat dissipation design
10. No UV & IR, No Blinking and No Mercury & Lead free
11. Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light or HPS light
12. Explosion-proof sign is Ex d II C T6, IP rate is IP65, Corrosion-proof grade is WF2, Insulation grade is I.
13. It apply to 1 zone and 2 zone or 21 zone and 22 zone explosive gas enviornment, Type IIA, IIB and IIC dangerous place



Technical Parameter:



Model Number GL-EP-80W
  Power 80W
Power/Quantity 1pc*80W
Luminous flux: 7500-8000Lm
Power Factor(PF) >0.95
Power Efficiency > 90%
Color Index(CRI) Ra85
Lamp' s Efficiency (%) > 90 %
IP Rating IP 65
Color Temperature Warm White: 3000K
Nature White: 4500K
Cool White: 6500K
Working Life > 50, 000 Hrs
Light Body & Lampshade Material Aluminum Body & Aluminum/PC
Input Voltage / Frequency Range AC85 - 265V / 50/60 Hz
The driver High Efficiency LED Driver
Lighting Angle 120 degree
Total Harmonic Distortion (THD) 8%
Working Temperature - 40 - + 50 ° C
Storage Temperature 0 - 50 ° C
Working Humidity 10 % ~ 90 % RH
Junction Temperature 70 ° C ± 1 0% ( Ta= 25 ° C )
Dimension 290x160mm





Applications:

1.Tunnel, Subway, Underground Lighting;
2.Gymnasium, Sports Stadium Lighting;
3.Building, Billboard Lighting;
4.Gas Station, Garage Lighting;
5.Park, Garden Lighting;
6.Workshop, Factory Lighting;

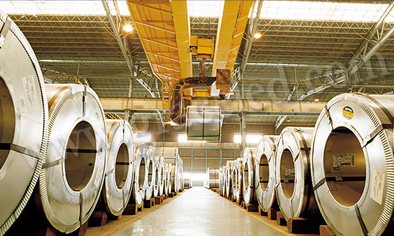

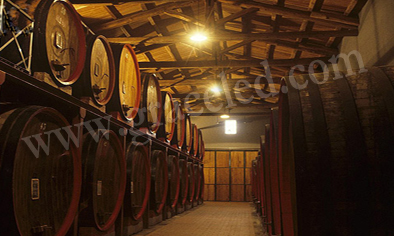

7.Warehouse, Storage Lighting;
8.Yard, Square Lighting;
9.Road,Highway Lighting;
10.Station,Dock Lighting etc
