3W 5W 7W COB Dimmable LED Spotlight

3W 5W 7W COB LED Spotlight
Base: MR16, GU10 and E27
Diameter: 49mm
Driver: Constant Current Driver
Dimmable: Yes
Warranty: 3 years




Description

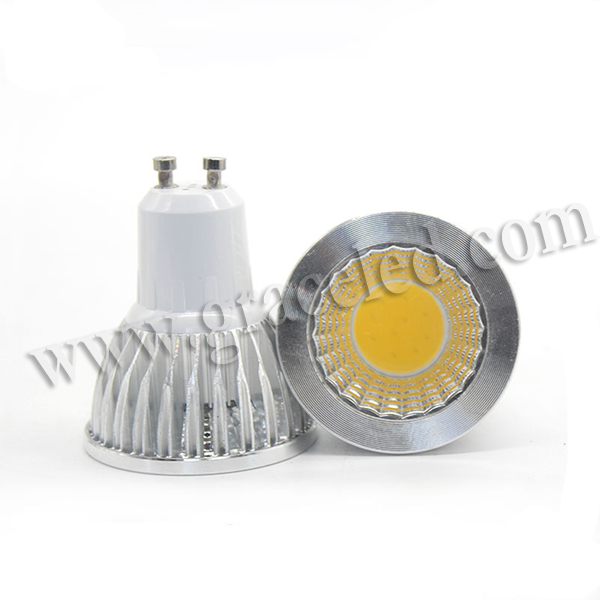

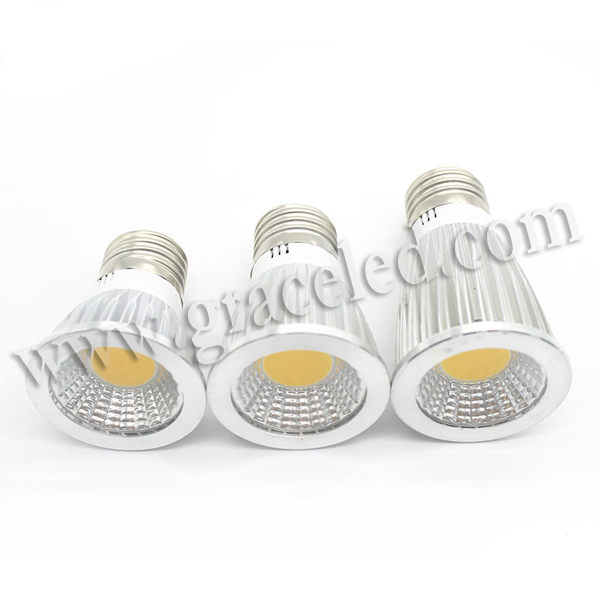

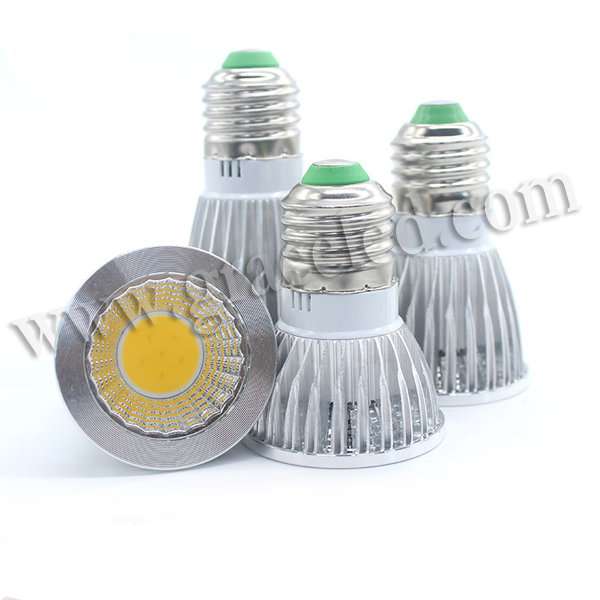

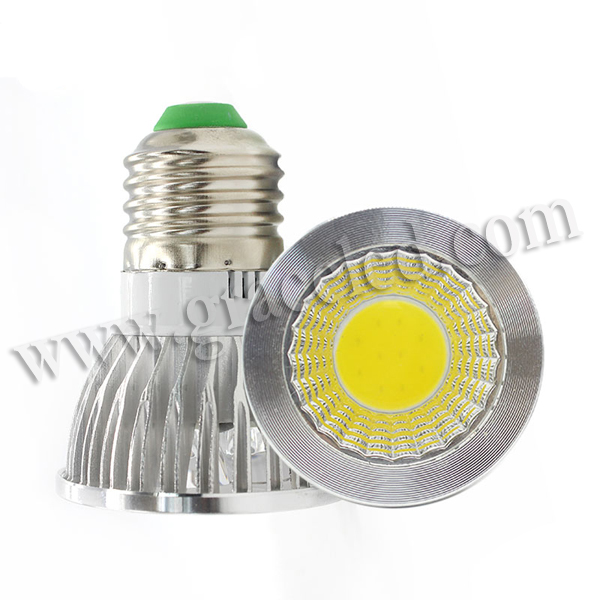

3W 5W 7W COB LED Spotlight

Special Features:

1) High Brightness, High Efficiency, Energy-Saving, Low Electricity Consumption.
2) Built-In Reflector, High Light Output And Uniformly Light
3) Integrated Heat Dispersion Structure, Low Lumens Depreciation And Long Lifespan
4) Outside Constant Current Driver, Universal Available, Easy To Replace.
5) Aluminium Alloy Frame With High-Thermal Conductivity, Simple And Nice.
6) Excellent Heat Sinking Design
7) Vibration Resistant Easy To Transport And Install.
8) The Light Decay Is Very Small (Less Than 1% After 2000hrs Working Hours).
9) Diffrernt Colors For Your Select.

Product Name COB LED Spotlight
Power (±10%) 3W 5W 7W
Power Factor(PF) >0.95
Input Voltage AC85-265V  50-60Hz
Luminous Flux 80-100LM/W
CCT 3000K/4500K/6500K
Color Range Warm white,Nature white,Cool white
CRI >95
Beam Angle 15º, 25º, 45º
Size D49×L60mm,D49xL70mm,D49xL85mm
Lamp Housing Aluminum
Heat Sink Die-casting Aluminum radiator
Brand of Chip Epistar
Driver Build-in
Dimmable Optional
Lifespan >30,000 H
Working Temperature -20 - 40
Warranty 3 Years
Certification CE / RoHS / SAA / TUV / CCC


Applications:

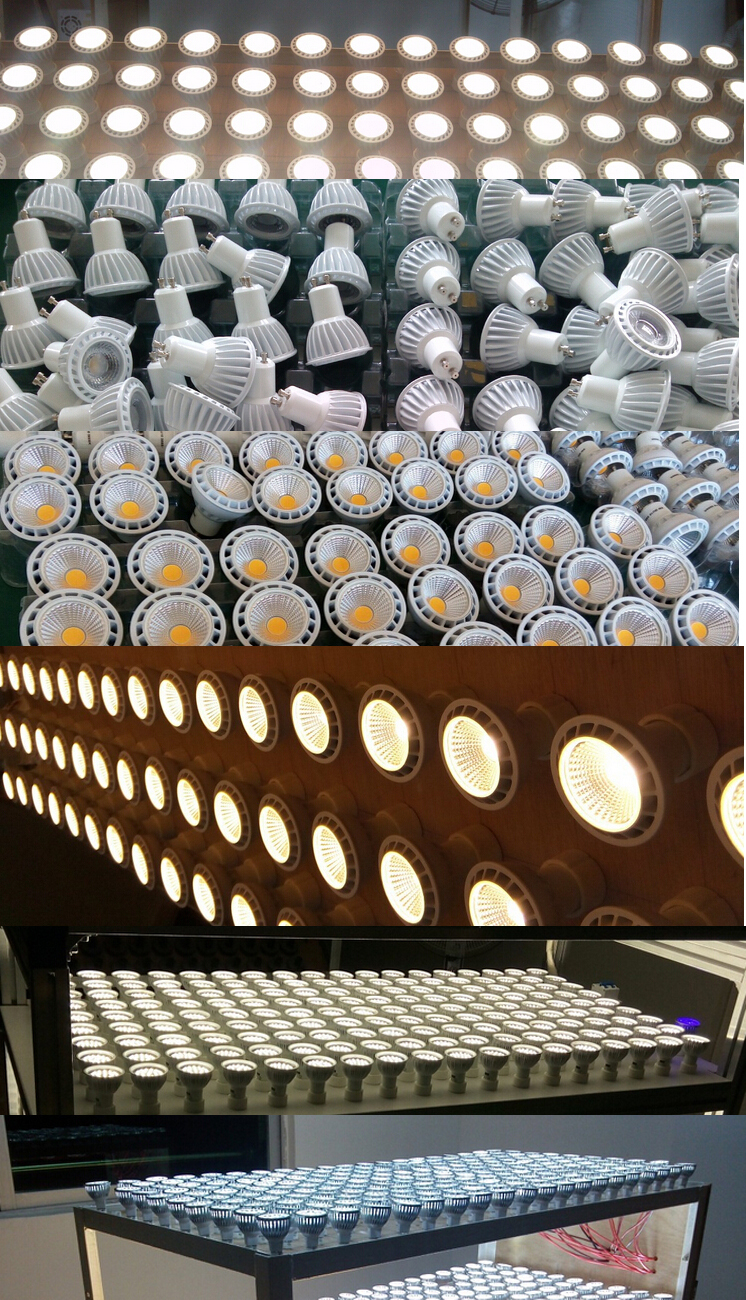

 Productiong aging photo showing:

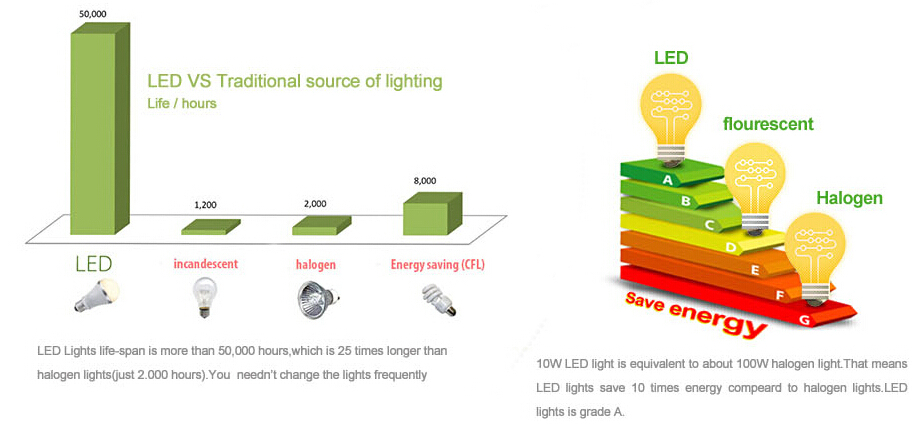

Why choose our LED items:
