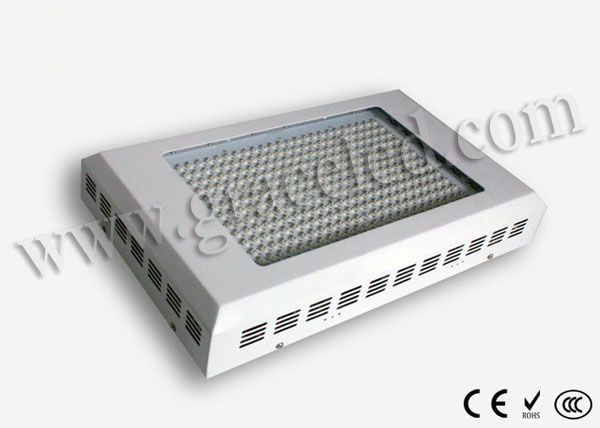

288X3W LED Grow Light Square

Power : 288X3W
LED Sources: 288PCS 3W LEDs
LED ratio: Red 8= Blue 1
Warranty: 3 years
Certificates: Meet CE&RoHS standard

Description



 Product features:



1). 288*3W led grow light turn out the module, Compared with traditional lights: the main body separation, simple disassembly

2)Product power line is plugged, it is more convenient than the traditional fixed disassembly,the design become more humane

3)The wavelength ratio can be customized as per as customer’s require. we advise the wavelength ratio is 8:1,7:2,7:1:1.Red, blue, orange, white. Yellow hybrid to promote plant growth.

4)LED spectrum can be customized, We suggest wavelength Red:620-630nm and 640-660nm,Blue: 450-460nm and 460-470nm.red light promote flowering, blue light promote growing leaves. And you can choose the suitable wavelength and color proportion to promote the plants growing.

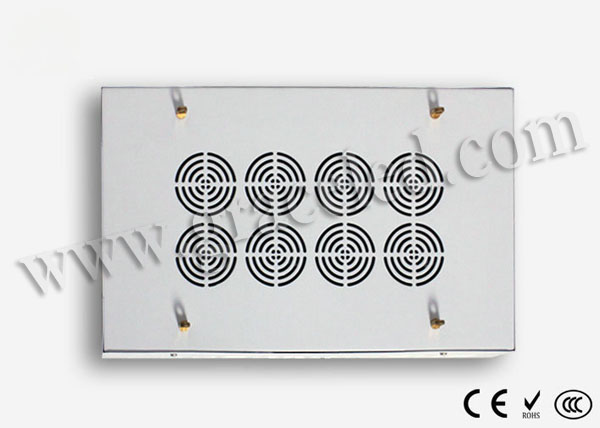

5)Unique heat dissipation device, thermostatically controlled fans to keep LED light cooling.

6)Built-in power supply, don’t need other equipment configuration,plug AC85V~264V directly is simple and safe,do not need the mirror and ballast

7)Ideal for all phases of plant growth, very good for indoor garden, hydroponic or soil Culture.

8)The lighting area and the height will be changed according to the different plants and the environment, and the technology parameter will change

 9)Eco-friendly: no mercury and other harmful heavy metal, no light harmful for plant.





Parameters



288*3W LED grow light parameters

Item

Value

Item

Value

Dimension

510x310x80mm

Power

470W (288x2W)

Input Voltage

AC85~264V

lux

1M/5000,5M/2320,7M/1410

Working Current

600mA

Lifespan

50,000 hours

Working frequency

50/60 Hz

Color

Red/Blue

Working Temperature

-20°-40°

Footprint(Square meters)

2m/17

Inner Box

168x400x565mm

N. W.

11.9Kg/PC

Carton Box

590*340*410mm

G.W.

24kg/2pcs







Note:

1).Do work under normal environment.

2).Do not touch or beat the light when working.

3).None waterproof,do not drip the water in.

4).The above specification is on the basic of red and blue 8:1.Any ratio could be customized.
