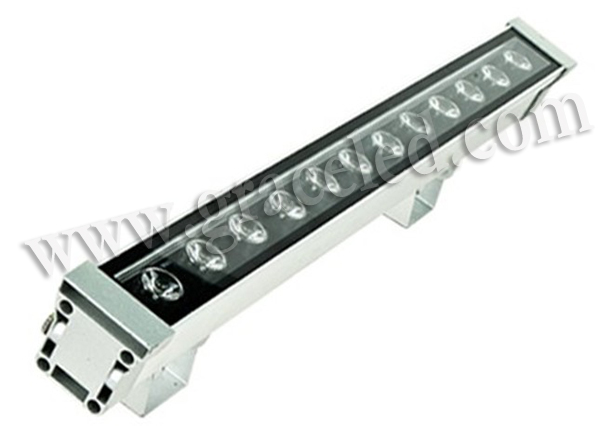

24X1W LED Wall washer 01

Model No.:GL-WW24-24W01
Driver: Build-in type High Efficiency driver
Certificates: CE&RoHS
Warranty: 3 Years
Light Sources: Edison/Cree
Lifespan: 50,000hrs

Description

Features:

1.Work with RGBW LED Controller with  four or more  channels.

2.Durable  and  completely  corrosion  resistance --Good  heat  dissipation  performance. --Silicon  rubber  sealing  technology  .securing perfect waterproof  performance of IP65.

4.High  temperature  resistant,  anti-aging.

5.The  unique  optical  PMMA  lens  ensure  the  brightness maintenance  and  projection effect 3mm  tempered glass  cover,  strong protection and good optical  function.

6. No Mercury and Other Hazardous Materials, Fully CE ad RoHS compliant.

7.Exquisite  appearance.

8.Housing:  Alluminum alloy  with  extrusion  technology and  oxidation  treatment.





Technical Parameter:



Modle No. GL-WW24-24W01
Material Aluminum+Toughtened glass
LED Brand Epistar
Power 24W
Led QTY 24 pcs
Input Voltage AC85-265V
Frequency Range 50-60z
Lumen 90-100lm/w
CRI a75
Lighting Angle 15,25,30,45 and 60 degree
Total Harmonic Distortion (THD) 8%
Life Span 50000hours
Color Temperature

Warm white(3000k)
Natural white(4500K)
Cool white(6000K)

RGB/Blue/Green/Red

Working Temperature –20-+50 °   C
Storage Temperature 0 - 50 ° C
Junction Temperature 10 % ~ 90 % RH
Housing Color Grey Housing
Clear Toughtened glass
Dimension 46X46X1000mm







Applications:

1. Lights for billboard, architecture, building walls, commercial building projection.
2. Lights for canopy,corridor,window,archway, court,parking lot,gymnasium,dock,park.
3. Lights for bar, disco, pub, club, show and events, tree decoration,sculpture.
4. Other indoor lighting or other outdoor lighting.

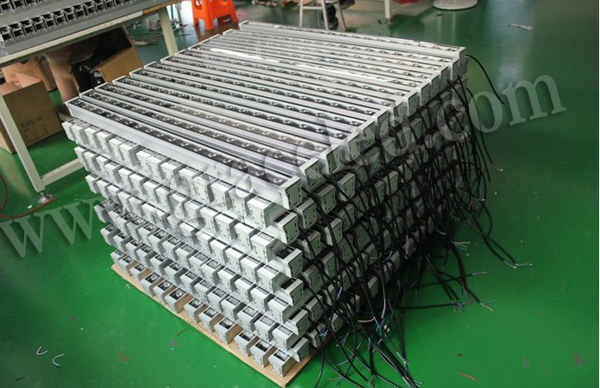

Aging Test:
