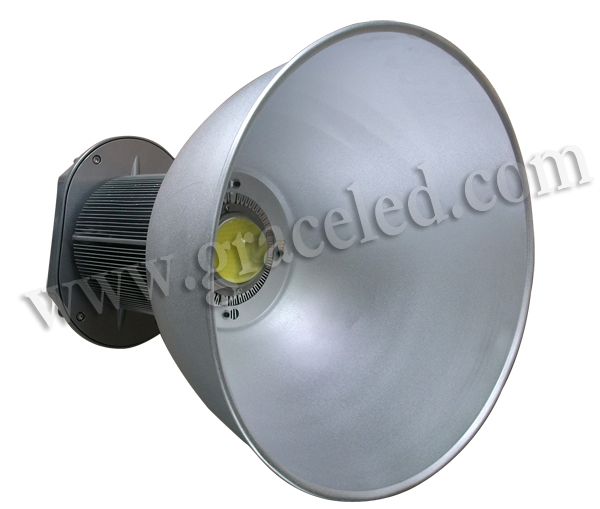

120W LED Highbay light
Item No. : GL-HB1-120W
Certificates: Meet CE&RoHS standard
LED Sources: COB LEDs
Lampshade: 45/90/120 degree
Driver: Build-in Type
Warranty: 3 years
Description
Features:
1.30W-250W; 100-110LM/W; AC85-265V/AC105-305V, DC12V/24V; 2700-7000K available, ±200K difference;
2.CE and RoHS approved;UL Driver for 30W-250W ;
3.Reflector with glass bottom used in chemical factory;
4.5-year warranty for project;MOQ=1pc; lead time 3 days; Dialux simulation for projects;
5.Integrated single LED Epistar/bridgelux with constant current. High quality driver ensures the long lifespan;
6.Patented heat dissipation technology for radiator;
7.Aluminum 6063 for resistance to corrosion, seawater, oil and lubricant etc.;
8.Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;
9. Closed corrosion-proof silicone ring for dustproof and waterproof; cool light source (LED) for anti-explosion (safe for gas station etc.); scientific fixture design for vibration resistance;
10. Lampshade can be made in Aluminum and PC material.
Technical Parameter:
| Model Number | GL-HB1-120W |
| Power | 120W |
| Power/Quantity | 1pc*120W |
| Luminous flux: | 10800-12000lm |
| Power Factor(PF) | >0.95 |
| Power Efficiency | > 90% |
| Color Index(CRI) | Ra85 |
| Lamp' s Efficiency (%) | > 90 % |
| IP Rating | IP 54 |
| Color Temperature | Warm White: 3000K Nature White: 4500K Cool White: 6500K |
| Working Life | > 50, 000 Hrs |
| Light Body & Lampshade Material | Aluminum Body & Aluminum/PC |
| Input Voltage / Frequency Range | AC85 - 265V / 50/60 Hz |
| The driver | Meanwell |
| Lighting Angle | 45 degree, 90 degree, 120 degree |
| Total Harmonic Distortion (THD) | 8% |
| Working Temperature | - 40 - + 50 ° C |
| Storage Temperature | 0 - 50 ° C |
| Working Humidity | 10 % ~ 90 % RH |
| Junction Temperature | 70 ° C ± 1 0% ( Ta= 25 ° C ) |
| Dimension | 45° Size: ￠420X625mm 90°Size: ￠505X600mm 120°Size:￠505X580mm |
Applications:
Widely used in Factory, Coliseum, Shops, Super market, Underground platform, Gas station and other illumination and decoration at home and public area.
