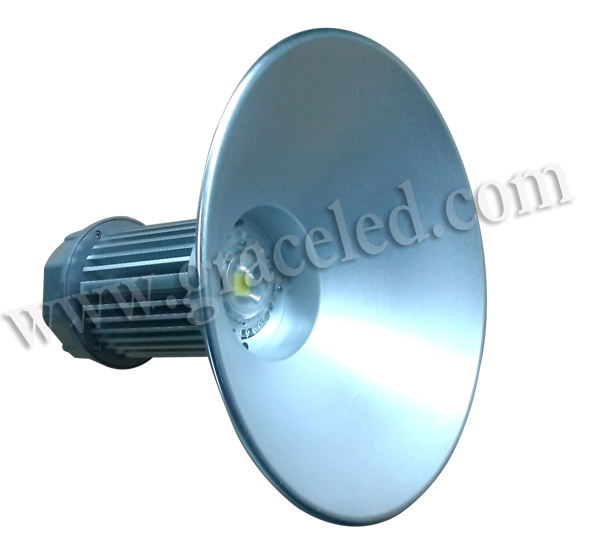

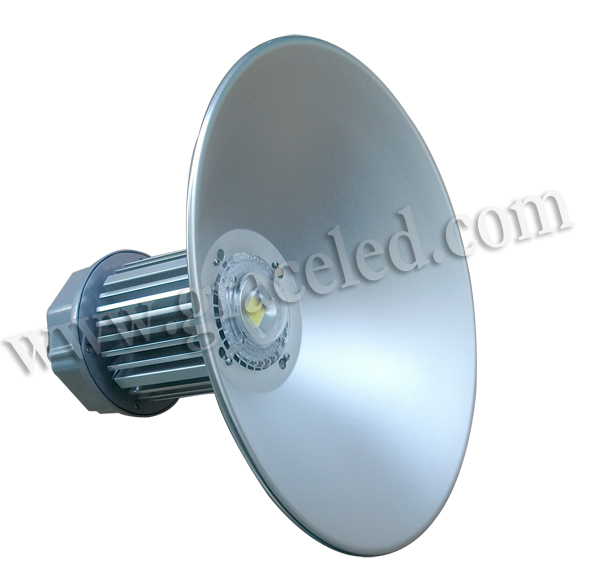

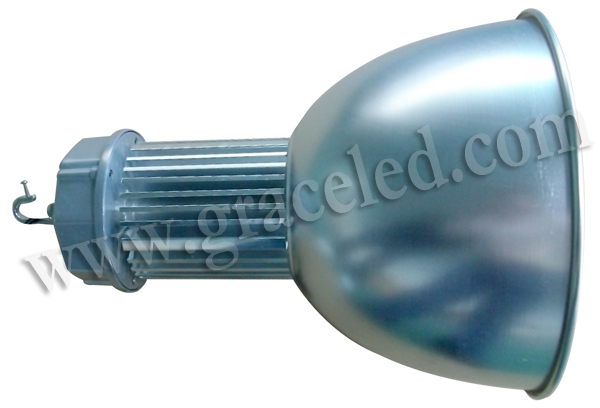

100W COB LED Highbay light 01

Item No. : GL-HB1-100W01
Certificates: Meet CE&RoHS standard
LED Sources: COB LEDs
Lampshade: 45/90/120 degree
Driver: Build-in Type
Warranty: 3 years



Description

Features:



1.30W-250W; 100-110LM/W; AC85-265V/AC105-305V, DC12V/24V; 2700-7000K available, ±200K difference;
2.CE and RoHS approved;UL Driver for 30W-250W ;
3.Reflector with glass bottom used in chemical factory;
4.5-year warranty for project;MOQ=1pc; lead time 3 days; Dialux simulation for projects;
5.Integrated single LED Epistar/bridgelux with constant current. High quality driver ensures the long lifespan;
6.Patented heat dissipation technology for radiator;
7.Aluminum 6063 for resistance to corrosion, seawater, oil and lubricant etc.;
8.Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;
9. Closed corrosion-proof silicone ring for dustproof and waterproof; cool light source (LED) for anti-explosion (safe for gas station etc.); scientific fixture design for vibration resistance;
10. Lampshade can be made in Aluminum and PC material.



Technical Parameter:

Model Number GL-HB1-100W01
  Power 100W
Power/Quantity 1pc*100W
Luminous flux: 9000-10000lm
Power Factor(PF) >0.95
Power Efficiency > 90%
Color Index(CRI) Ra85
Lamp' s Efficiency (%) > 90 %
IP Rating IP 54
Color Temperature Warm White: 3000K
Nature White: 4500K
Cool White: 6500K
Working Life > 50, 000 Hrs
Light Body & Lampshade Material Aluminum Body & Aluminum/PC
Input Voltage / Frequency Range AC85 - 265V / 50/60 Hz
The driver  Meanwell
Lighting Angle 45  degree, 90 degree, 120 degree
Total Harmonic Distortion (THD) 8%
Working Temperature - 40 - + 50 ° C
Storage Temperature 0 - 50 ° C
Working Humidity 10 % ~ 90 % RH
Junction Temperature 70 ° C ± 1 0% ( Ta= 25 ° C )
Dimension 45° Size: 420X585mm
90°Size:
505X560mm
120°Size:
505X540mm

Applications:



Widely used in Factory,  Coliseum, Shops, Super market, Underground platform, Gas station and other illumination and decoration at home and public area.



Package:
