T8 Removable/Detachable LED Tube Light 2835SMD 9W 18W

Item No. : GL-T8-2835-F2-9W01
Certificates: Meet CE&RoHS standard
Lampshade: Clear and Frosted
Length: 0.6m, 1.2m, 1.5m
Lifespan: 50,000 hours
Warranty: 3 Years

Description

Special Features:

1. Adopted High brightness Epistar 2835SMD LEDs. (70%-80% Energy-saving over fluorescent tubes)
2. Build-in Zener Diodes.(If one led fail, the remaining LEDs will still work)
3. Build-in High Efficiency driver, Power factor can be above 0.95.
4. Standard Length 60cm, 120cm and 150cm.
5. Wide voltage input 85-265V AC.
6. Work without ballast, Instant soft-start.
7. No RF interference, No flickering and buzzing.
8. No Mercury and other hazardous materials, fully RoHS compliance.
9. Frosted and Clear cover are available. (Frosted cover, never see LEDs, good for eyes)
10. High Shock/vibration resistant(not easy to be broken)
11. 3 years warranty time.( Working hours can be up to 50,000 hrs)

Technical Parameter:


Item No.  GL-T8-2835-F2-9W01 GL-T8-2835-F4-18W01
Size 600X26mm 1200X26mm
Color temperature Warm white:3000K                    Natural white:4500K Warm white:3000K                    Natural white:4500K
Pure white:6000K  Pure white:6000K
Type of LEDs SMD2835 SMD2835
LEDs quantity 48pcs 96pcs
Input Voltage AC85-265V AC85-265V
Power 9W 18W
Lumen 850LM 1750LM
Driver Build-in constant current driver, PF>0.95 Build-in constant current driver, PF>0.95



Application:

1, Office building, Shops, Shopping mall, Supermarket;2, School, Hospital, Exhibition hall; 3, Warehouse market lighting; 4, Factory; 5, Airport

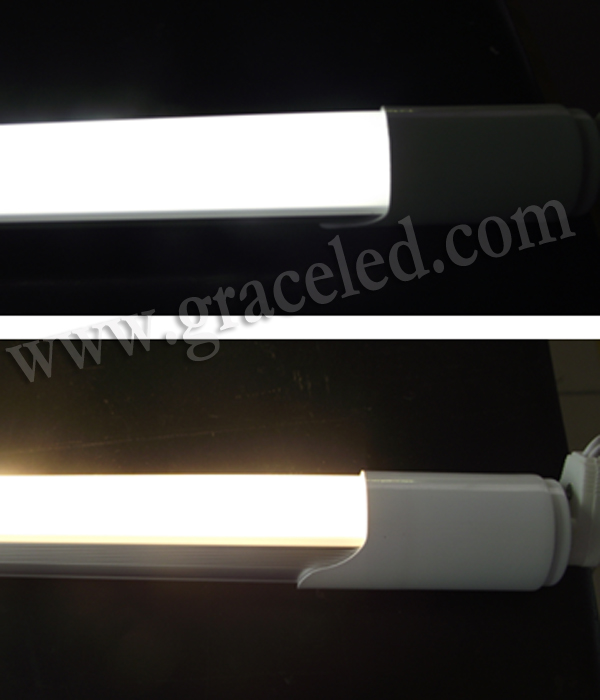

Aging Test:





Packing:
