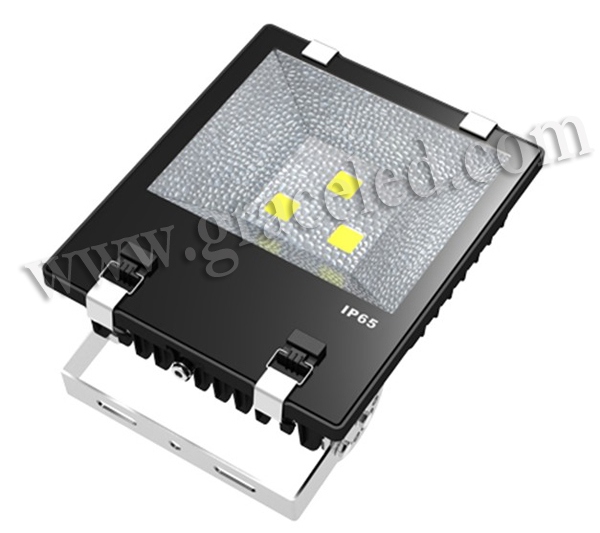

Fin Type 150W LED Flood Light

Item No. : GL-FL3-150W (With Copper Heat Pipe)
Certificates: Meet CE&RoHS standard
LED Sources: COB LEDs
IP Rate: IP65
Driver: Build-in Type
Warranty: 3 years


Description

 Fin Type 150W LED Flood Light

Features:

1.1060 Pure aluminum sheet with Fin Technology and high intensity toughened glass cover;
3. High efficiency and power factor LED driver;
4. 3PCS Powerful COB LED as the light source;imported high bright semiconductor chips;
5. Start without delay and no flickering;
6. High shock & vibration resistant;
7. Ideal Fin Technology of Copper Heat Pipe design to give the heat away and make sure long lifespan;
8. No UV & IR, No Blinking and No Mercury & Lead free;
9. Patented fixture design and Led package technology;
10. Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light or HPS light.



Technical Parameter:



Modle No. GL-FL3-150W
Material 1060 Pure Aluminum Sheet with FIN Technology
LED Brand Epistar
Power 150W
Led QTY 3 pcs
Input Voltage AC85-265V
Frequency Range 50-60z
Lumen 80-100lm/w
CRI a75
Lighting Angle 120 º
Total Harmonic Distortion (THD) 8%
Life Span 50000hours
Color Temperature Warm white(3000k)
Natural white(4500K)
Cool white(6000K)
Working Temperature –20-+50 °   C
Storage Temperature 0 - 50 ° C
Junction Temperature 10 % ~ 90 % RH
Housing Color Black Housing
Clear Toughtened glass
Dimension 397×310×158mm





Applications:

1. Tunnel, Subway, Underground Lighting;

2. Gymnasium, Sports Stadium Lighting;

3.Building, Billboard Lighting;

4.Gas Station, Garage Lighting;

5. Park, Garden Lighting;

6. Workshop, Factory Lighting;

7.Warehouse, Storage Lighting;

8. Yard, Square Lighting;

9.Road,Highway Lighting;

10.Station,Dock Lighting etc.



Product Structure:













Aging Test:















Packaging:
