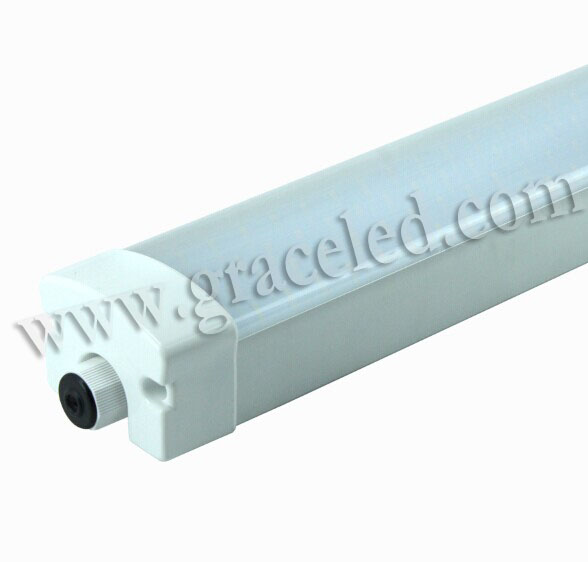

1.2M 40W LED Triproof light IP65 NEW

Item No. : GL-2835WF4-40W01
Power: 40W
Certificates: Meet CE&RoHS standard
LED Sources:2835SMD LEDs
Driver: Build-in Type
Warranty: 3 years
IP rate:  IP65

Description



  •  Features:
  • 1. Own complete production lines to ensure the best quanlity and cost control
  • 2. Complete test equipments, including EMC,IES,Hi-pot and 2M intergrating sphere etc
  • 3. Patent design for structure,rotatable end cap and isolated power supply
  • 4. Lower constant current to drive the LED to insure the lifespan and light decay
  • 5. 300,000 monthly production ability to ensure the timly delivery
  • 6. 3 years warranty time.
  • 7. OEM and ODM service
  • 8. IP65.
  • Technical Parameter:
  • Product Name 1.2M 40W LED Triproof light IP65 NEW
    Item code GL-2835WF4-40W01
    Dimension 1200*94*69mm
    LED Type SMD 2835
    LED Qty 240 LEDs
    Input Voltage AC100-240V
    Power 40 W
    Luminous Flux 3800-4400 LM
    Light Efficacy 95-110 LM/W
    Power Factor >0.95
    CRI >80
    Housing PC housing + PC striped/Frosted cover + Aluminum board
    LED Working Current 50-55 mA
    LED Beam Angle 135 degree
    Color Temperature WW 3000-3500K 4000-4500K
    PW 5000-5500K
    CW >6000K
    Lifespan 30,000-50,000hrs
    Packing 6PCS/CTN
    Carton size 1295*255*270MM
    Commercial lighting Supermarket/Shops/ Exhibition hall/Parking place/gas station, etc.
    Public lighting library/School/Tunnel/Metro/Bus/Train/Bus station, railway station, airport, etc.
    Industrial lighting Factory/Warehouse, etc.
    Input voltage AC100-240V
    Working voltage DC30-40V
    Superior Taiwan chip high efficiency and energy saving more than 70%
    Strong shape with AL housing + PC striped/Frosted cover
    Special design with Stainless steel clips
    Aluminum board Better heat dissipation
    Impact aging test 100% for 24-48 hours impact aging test before packing
    IP65 Waterproof/Dust-proof/Moisture-proof
  •
